Powłoki ocynkowane ogniowo objęte są podstawową 3-letnią gwarancją z możliwością przedłużenia nawet do 5 lat.
Wyposażenie standardowe obejmuje również szerokie koła 400/60-15,5.
Rozrzutnik w standardzie wyposażony jest w dyszel łamany-skrętny.
Maszyna została w całości zabezpieczona antykorozyjnie poprzez technologie ocynku ogniowego.
Technical data
- Load capacity 3,000 kg
- Gross vehicle weight rating 4,700 kg
- Unladen mass 1,700 kg
- Length 5957 mm
- Width 1,621 mm
- Height 2051 mm
- Width of cargo box interior 1260 mm
- Box wall height 750 mm
- Floor/wall sheet thickness 3/2 mm
- Height of platform from base 1100 mm
- Loading surface 4.46 m2
- cargo capacity 3.13 m3
- Track of wheels 1,200 mm
- Drawbar coupling height – bottom position 420 mm
- Drawbar coupling height – top position 880 mm
- Tire size 400/60-15.5
- Suspension rigid axle
- Design speed 30 km/h
- Minimum demand for tractor power 45 HP
- Spreading width depending on material used 0-2 m
Downloads
Features and accessories
- Wall height 750 mm with thickness 2.5 mm, hot-galvanized
- Hot-galvanized hydraulic interior rear wall

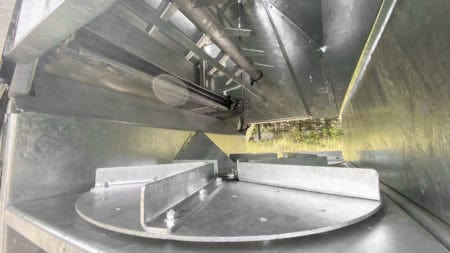

- Two hot-galvanized horizontal shredding drums

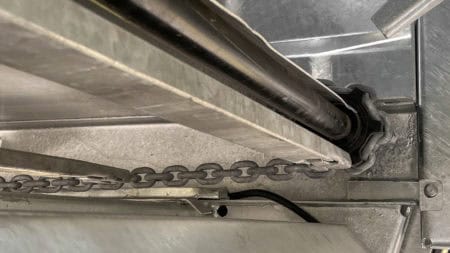

- Hot-galvanized conveyor chain, thickness 11 mm

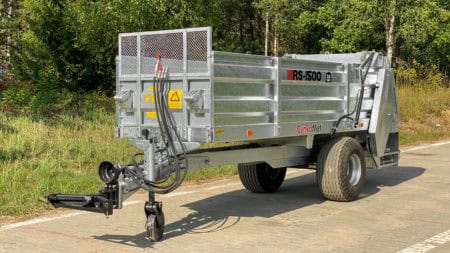

- Articulated swivel drawbar for coupling with top or bottom tractor hitch, homologated
(2015/208) - Rear flap making it possible to direct spreading
- Straight drawbar support with collapsible steel wheel
- Hot-galvanized bottom frame made of metallurgical 160 channel sections
- Hot-galvanized, riveted floor, thickness 4 mm
- Exchangeable, hot-galvanized conveyor strips made of 50x25x3 profile
- Mechanical advance of conveyor with 9-level regulation
- Star wheels made of spheroidal graphite iron
- Inclination adjustment of disc adapter’s side boards
- 12V lighting installation, bulbs
- Valve with fluid regulation of spreading plate speed
- Hydraulic installation made with flexible hoses
- Lighting installation connector cable with 7PIN 12V plug
- Hydraulic connectors to tractor, type ISO 7241-1 DN 12.5
- New 400/60-15.5 wheels
- Two wheel chocks placed in galvanized pockets
- Wheel-track aligning three-point hitch, homologated (2015/208)
Additional equipment
- Articulated PTO shaft for coupling to tractor
- Full LED lighting
- Hydraulic quick-coupler with pressure neutralizer in hose (1 pc.)
- Warning triangle
